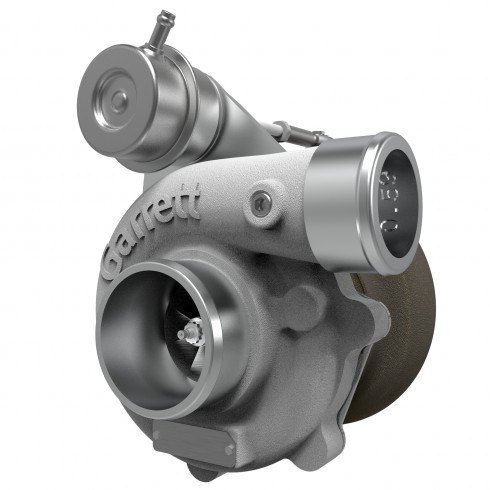

GBC 22-350
Click Image for Gallery
- 44mm compressor inducer | 56mm compressor exducer
- Outline interchangeable with GBC 17 / 20
- 200-350 horsepower capability
- Integrated wastegate assembly with calibrated actuator
- Billet compressor wheel with extended tip design for higher pressure ratio capability
- GTX Gen II compressor aero with modern gasoline turbine wheel aero
- Supports up to 350 horsepower
- Forged Fully-Machined Compressor Wheel
- Journal Bearing Rotating Group
- Internally wastegated turbine housing
- Engineered for small displacement engines including powersports, personal watercraft and automobiles
Garrett Boost | Club Line GBC22-350 Reference Data PN: 896055-5003S
Compressor Turbine Inducer Exducer Trim A/R Inducer Exducer Trim A/R Inlet Outlet 44mm 56mm 62 0.59 50mm 46mm 84 0.64 T25 5 Bolt
