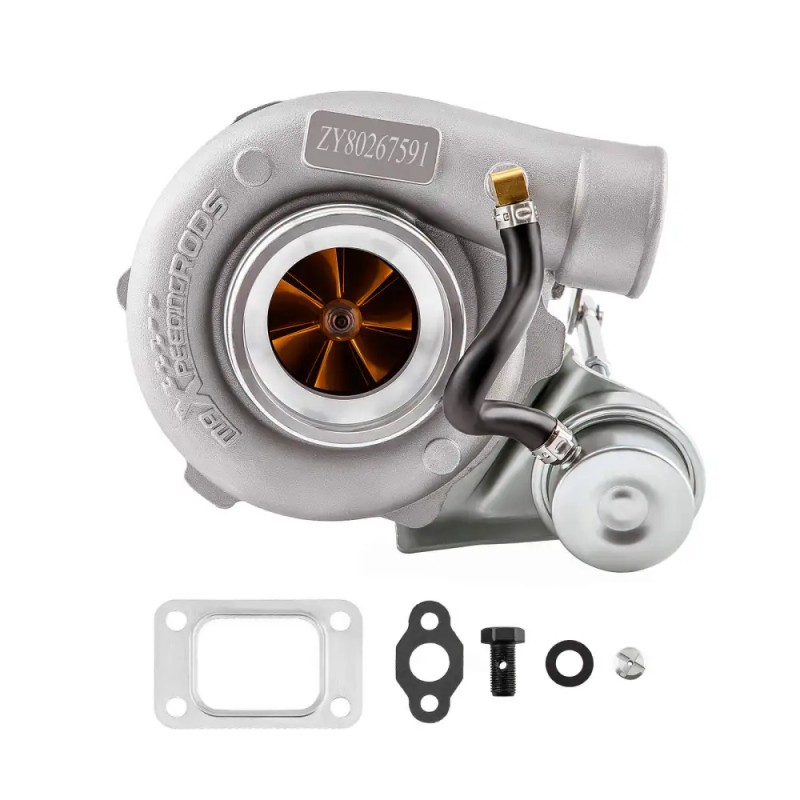

GT2860/71 BILLET

Exhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Thrust Bearing: 270 Degrees
Internal Wastegate: Yes
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M18*1.5
Horse Power: Boost Horse Power up to 350BHP
